Basics About MS-DOS
Color attributes are specifies by two hex digits. The first corresponds to the background; the second the foreground. Each digit can be any of the below values.
MS-DOS (Microsoft Disk Operating System)
·
MS-DOS
is defined as Microsoft Disk Operating System.
·
MS-DOS
is the most popular single user operating system in the World.
·
MS-DOS first version was released I August 1981.
·
Operating
System is only the interface between the users and the computer system.
·
Operating
System must be loaded in the memory before interact with the machine via the
operating system.
·
The Operating System software is stored o the
disk and loaded into the main memory from the disk where it is reside.
User
Interface
- User
interface refers to the mode and form of interactions between the users and the
computer.
Types
of User interface
- CUI (Character User Interface)
- GUI
(Graphical User Interface)
CUI (Character User Interface)
- In
the earlier systems, computer uses to interact with through Commands, which is
types through keyboard. As much of character typing or command typing was
involved in it, this interface is also known as Command User Interface. e.g
:- Disk Operating System (DOS)
GUI (Graphical User Interface)
- Over
the time, a new interface was originated which emphasized more upon knowing
what is required by one or more clicks rather than typing of commands this
interface was more graphics and was known as Graphical User Interface. e.g :- Windows
GUI Based
How
To Start MS-DOS
- The
method which I am describing is very shortcut and easy method for all new
users.
Follow
these steps to start MS-DOS :
1. Click on window button + R
2. Type
CMD (in capital or small letter)
3. Click on Ok
Command
- Commands are
small programs, which are made to perform a particular job.
- Every command
performs different task.
- Without commands
not possible to do any work in Computer.
- There are two
types of command in MS-DOS.
Two types of Commands :-
1. Internal Commands.
2. External Commands.
Internal Commands :
- These commands
enter into the computer memory during computer booting. These commands are not
in the form of any file; so neither they can be viewed nor can be edited or
detected.
For example : MD, CD, TIME, DATE, COPY, COPY CON, TYPE ETC.
Some important Internal Commands :
1. CLS : This command is used to clear the screen.
Syntax : C:\users>Cls
2. TIME : This command is used to display and set the system Time
.
Syntax : C:\users>Time
3. DATE : This command is used to display and set the system Date
.
Syntax : C:\users>Date

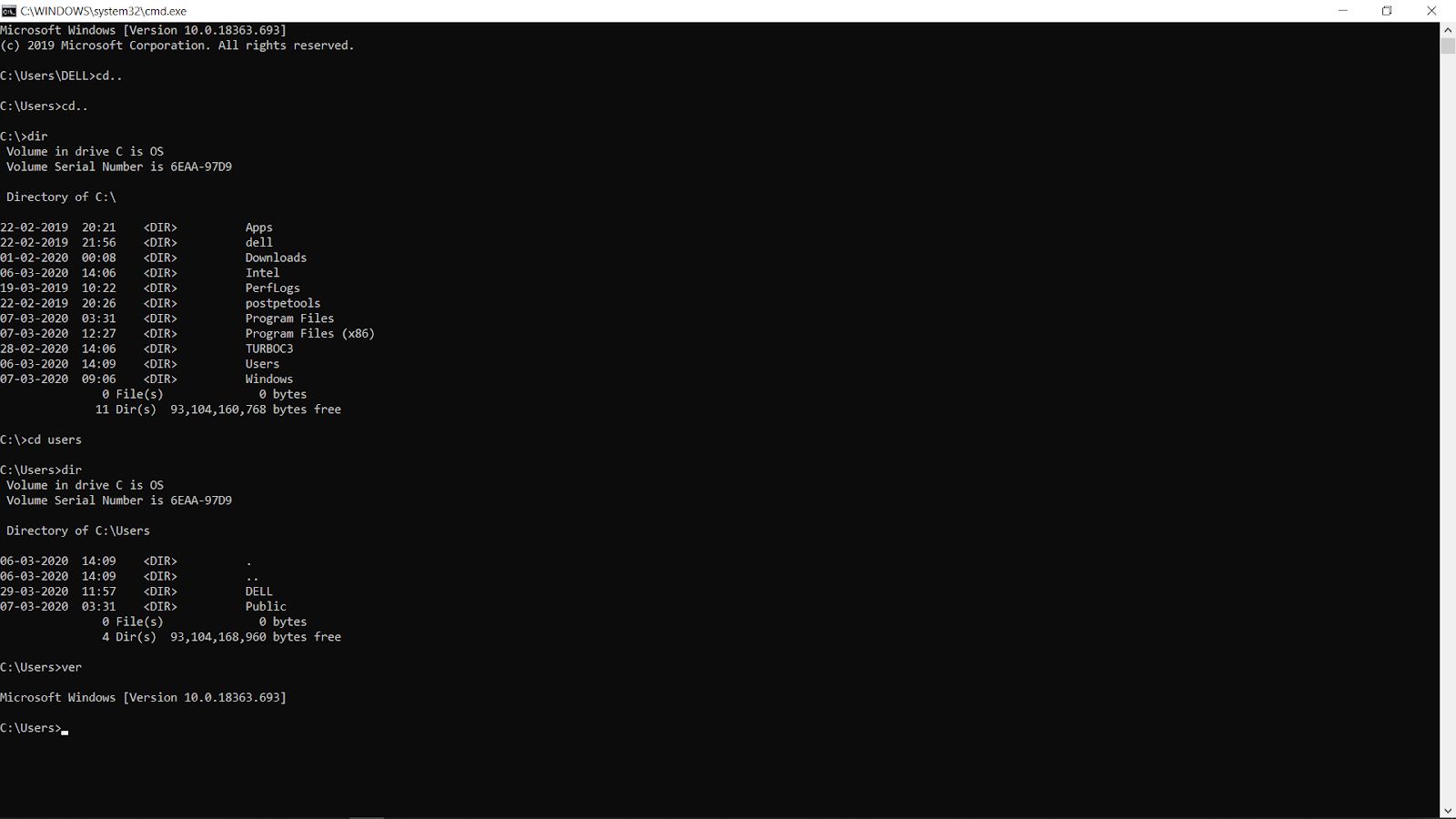

4. DIR : This command is used for listing the directories and
files, their sizes, date and time of last modifications.
Syntax :
C:\users>Dir
5. MD (Make Directory) : This command is used to create directory
or sub directory in any drive or any directory.
Syntax : C:\users>MD (drive\path\directory name)
Example : C:\users>MD
student & press Enter key
6. CD (Change Directory) : This command is used to change your
working directory to the directory you specify. In simple way we can say cd is
used to change directories from one to another.
Syntax : C:\>users>CD (drive\path\directory
name)
Example : C:\users>CD
student
7. COPY CON : This command is used to creating a files in DOS after
inputting in the file, he file will have to save by pressing ctrl + Z or
function key f6.
Syntax : C:\users>Copy Con (file name)
To
create the file follow these steps :
(i) Type Copy Con student
(ii) Type which you want to
be type in the file.
(iii) Press F6 function
key or CTRL + Z keys to save the file. ^Z will be displayed on
the screen, which indicates that the file is complete.
(iv) Press Enter and after that the DOS will
save the file and will display the message ‘1 File(s) copied.
8. RD (Remove Directory) : This is used to delete a directory
which is empty. (i.e there should be no files and directory under specified
directory)
Syntax : C:\users>RD (drive\path name)
Example : C:\users>RD
student & press Enter key
9. REN : This command is used for renaming of files and folders.
Syntax : C:\Users>Ren (drive\path name
with file name) (new name)
Example :
C:\Users>Ren student BCA
10. COPY : This command is used for copying one or more files from
one location to another.
Syntax : C:\users>Copy (source file \
with location)
(destination with location)
Example : C:\>user\Copy
BCA F: & press Enter key
11. DEL (Delete) : This command is used for deleting the specified
files in any locaton.
Syntax : C:\users> (drive name\path with file name)
Example : C:\user\Del>
BCA F: & press Enter key
12. TYPE : This command is used to view the
contents of text files.
Syntax : C:\users> Type (drive name\path
with file name)
Example
: C:\users> Type BCA & press Enter
key
13. VER
: This command displays the version of the
Microsoft Windows running on your computer.
14. VOLUME : This command displays the path that how we have come to
the present position or sets a search path for executable files.
Syntax : C:\>Volume (drive name)
Syntax : C:\>Volume (drive name)
15. COLOR COMMAND : The color command
allows users running MS-DOS or the Windows command line to change the default
color of the background or text.
Color Syntax
Sets the default console foreground and background colors.
Color (attr)
attr
|
Specifies color attribute of console output.
|
Color attributes are specifies by two hex digits. The first corresponds to the background; the second the foreground. Each digit can be any of the below values.
0 = Black
|
8 = Grey
|
1 = Blue
|
9= Light Blue
|
2 = Green
|
A = Light Aqua
|
3 = Aqua
|
B = Light Aqua
|
4 = Red
|
C = Light Red
|
5 = Purple
|
D = Light Purple
|
6 = Yellow
|
E = Light Yellow
|
7 = White
|
F = Bright White
|
External Commands :
- These commands
are stored in the computer list in the form of files. These Commands can be
viewed, copied, changed or deleted. For example : FORMAT, COPY, PRINT, SYS,
EDIT, TREE, SORT, PROMPT etc.
Some important Internal Commands :
1. MOVE : This command is used to move all files and
directory is specified directory to destination directory or drive. We can also
rename the file or folder during moving.
Syntax : C:\users> Move (source path
name\destination path)
Syntax : C:\users> Move (source path
name\destination path) (new name)
Example : C:\users>Move D:\BCA E: & press Enter
key
Example : C:\users>Move D:\BCA E: BCA1 & press Enter
key
2. LABEL : This command is used for displaying and set
volume level of the disk, the disk volume level should be less than or equal to
eleven character long.
3. DEL TREE : This command is used to remove the
specified directory, sub-directory & files completely.
Syntax : C:\users> Deltree (drive\path name)
4. FORMAT : When any disk is to be used, it should
allocates track and sector in order to make it usable. New Disk are blank and
unformatted before using them, they should be formatted. The format command
creates a new route directory and file allocation table for the disk.
Formatting means creating and making new track and sectors on a disk.
Syntax : C:\users>Format (drive name)
FORMAT with /S switch
When the disk formatted with /s option, the disk can be used as a
booking disk. C:>DOS>Format A: /s.
The above command copies the OS files MSDOS>SYS,IO.SYS and
COMMAND.COM which are required for booting the machine from your system startup
drive to the newly formatted disk. The
disk can then be used for booting.
FORMAT with /U switch
Here’s the command C:DOS>FORMAT A: /U
Above command specifies an Unconditional Format which destroys all
existing data and prevents you from later unformatting the disk.
FORMAT with /Q switch
This can be used only with the
previously formatted disk. This deletes FAT, Root directory and data of disk
but doesn’t scan for the bad errors. This is generally used for Quick
formatting.
Warning As Format command deletes all existing
data, use this command with extreme caution. Any disk formatted (except with /U
switch) may be later unformatted using the UNFORMAT command
5. X COPY : This
command is used to copy files and directory trees from one disk to another disk.
Syntax : C:\users>X Copy (source folder) (destination folder)
6. EDIT : This command is used to modify any arched
files and with the help of this command we can print the file. It is a menu
provides various facilities like ; Cursor movement, edit color, cut, copy,
paste, etc.
Syntax : C:\users> Edit (source file
name)
Example : C:\users>
Edit D:\Boy\Ram press Enter key
7. TREE : This command is used to show files in a
particular drive or folder.
Syntax : C:\users>Tree
8. DISK PART :
D:\>Diskpart
DISK -
Display a list of disks. Ex: List Disk.
PARTITION -
Display a list of partitions or the
selected disk. Ex: List Partition.
VOLUME -
Display a list of Volumes. Ex: List Volume.
VDISK -
Display A list of virtual Disk. Ex: Virtual Disk.
ATTRIBUTE -
It helps in hide and unhide any files and folders.
Syntax for
hide : D:/>Attrib +h (folder name)
Syntax for
un-hide : D:/>Attrib -h (folder name)
9. BATCH FILE
- Batch file is a collection or list of commands
that are processed in sequence often without requiring user input or intervention.
- With
a computer running a Microsoft operating
system such as windows, a batch file is stored as a file with a .bat file extension.
- In
other operating system may define a batch job in a shell script, containing a
list of commands to be executed one
after the other.
Syntax : C:\users>Copy Con (file name.bat)
In this example
below, we use the windows Notepad to create a batch file.
I. Click on Start
II. Type Notepad
in the run box and press Enter
III. Once Notepad is open,
type the following lines or copy and paste them.
@echo off
echo Hello this a test batch file
pause
dir C:\users
D:
dir D:
pause
|
IV. Click File and
then Save, and then navigate to where you want to save the file.For the
file name , type test.bat and if your version of windows has a save as
type option, choose All files, other wise it saves as a text file. Once you
have completed these steps, click the Save button and exit notepad.
V. To run the batch
file, double-click it like any program. once the batch file has completed
running, it closes automatically.
10. DISKCOPY
- This command
copies the contents of one floppy from the source drive to a formatted or un-formatted
floppy disk in the destination drive. This command copies the data from
particular position on the source disk to exactly the same position on the destination
disk.
Syntax Diskcopy A: B:
Note : copies contents of A: to B: drive. This command can be used
with /V switch which verifies that the disk is copied correctly.
